3d Welded 358 Anti Climb Fence Clear View Anti Theft Prison 3"*0.5''*8# Gauge

Product Categories
Anping yuanhai wire mesh products Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3d Welded 358 Anti Climb Fence Clear View Anti Theft Prison 3"*0.5''*8# Gauge

  • 1
  • 2

Brand Name : Yuanhai

Model Number : YH-ACF

Certification : ISO9001:2015

Place of Origin : CHINA

MOQ : 50 PCS

Price : Negotiable

Supply Ability : 500PCS PER MONTH

Packaging Details : 1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels

Material : Low Carbon Steel Wire

Hole Size : 3"x0.5" / 76.2*12.7mm

Wire Diameter : 4.0mm

Feature : Anti-corrosion/Anti-climb/Anti-cut

Post Size : 60x60mm, 60x80mm, 80x80mm

Surface Treatment : Galvanized,powder coated,PVC coated

Fence Topping : Razor Wire, Barbed Wire, Anti Climb Spikes

Fence Height : 3.0m, 2.4m, 2.2m, 2.0m or customized

Welded Strength : range 540–690 N/m2.

Color : Green RAL 6005/Black RAL 9005.

Application : prison, airport, hith way

Post Distance : 2000mm, 2500mm, 3000mm

Contact Now

3D Welded Fence Clear View 358 Anti-theft Fencing For Prison 3"*0.5''*8# Gauge

Description of 358 Security Fencing

Clearvu fenceing are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools. Clearvu fenceing are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing. Clearvu fencing panel can be bent in part to enhance the aesthetic effect.

  • Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
  • Wire diameter: 4 mm horizontal wire and vertical Wire.
  • Weld strength: range 540–690 N/m2.
  • Surface treatment: 358 mesh fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
  • Colors: Green RAL 6005, or Black RAL 9005.
  • Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.

Specifications of 358 Security Fencing

Specification of 358 Security Fencing
Mesh Opening Wire Diameter Panel Height Panel Width Post Type
12.7x76.2mm
(0.5'' x 3'')		 3/3.5/4mm 1.2-6m 2.0-3.1m Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm		 Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.

358 fence 2.1m 2.4m 3.0m
358 fence hight 2134mm 2438mm 2997mm
358 fence width 2515mm 2515mm 2515mm
358 fence hole size 12.7*76.2mm 12.7*76.2mm 12.7*76.2mm
wire 4mm 4mm 4mm
wire if need other wire diameter can order
358 fence posts 60*60*3mm 60*60*3mm 60*60*3mm
358 fence posts length 2.8m 3.1m 4.0m
no of fixings 8 9 11

Features of 358 Security Fencing

Effective Deterrence
The DutyGuard security fence system is designed to present a strong barrier against attack, featuring heavy welded wire panels that deters vandalism and break-ins, while offering critical visibility.
Anti-Cut & Anti-Climb
DutyGuard security mesh protects against both cutting and climbing, with heavy gauge mesh and small mesh openings that resist common cutting tools and hand or foot holds.
Long Service Life
High quality galvanized steel and aluminum components provide for a long service life. This system is also available with a super-durable, Architectural Grade Powder Coating.
Superior Coating
DutyGuard is available with Betafence USA’s exclusive super-durable powder coating, protecting the fence and gates from weather and U.V. aging. This ensures the barrier will retain its appearance and structural integrity for many years, with a minimum of upkeep or maintenance.

Surface treatment of 358 Security Fencing


1> Electric Galvanized Then PVC Coated(powder thickness 0.1mm)
2>Electric Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
3>Hot Dipped Galvanized Then PVC Coated(powder thickness 0.1mm)
4>Hot Dipped Galvanized Then Powder Coated(powder thickness 0.8-1.2mm)
5>Hot Dipped Galvanized After Welded(zinc coating: 40-500g/m²)

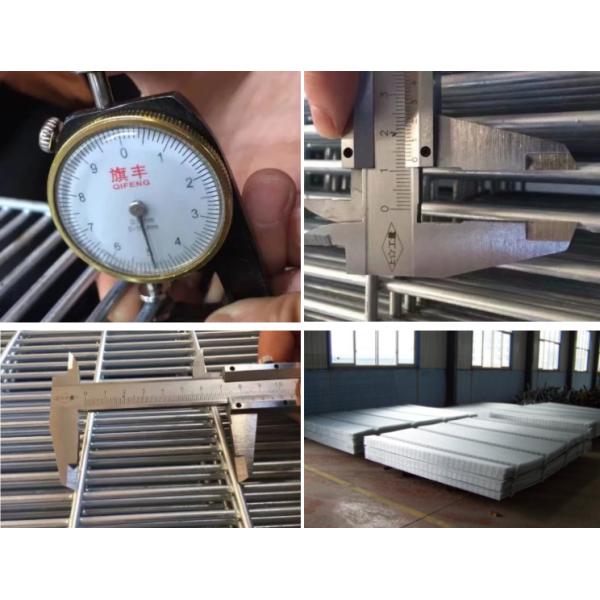

Display of 358 Security Fencing

3d Welded 358 Anti Climb Fence Clear View Anti Theft Prison 3"*0.5''*8# Gauge

3d Welded 358 Anti Climb Fence Clear View Anti Theft Prison 3"*0.5''*8# Gauge

Packing of 358 Security Fencing

Fence Panel Packing:
1. Plastic film at the bottom to avoid the panel destroyed.
2. 4 metal corners to ensure the panel strong and uniform.
3. wood plate at the top of the pallet.
4. pallet tube size:40*80mm tubes at the bottom vertical position.

3d Welded 358 Anti Climb Fence Clear View Anti Theft Prison 3"*0.5''*8# Gauge

3d Welded 358 Anti Climb Fence Clear View Anti Theft Prison 3"*0.5''*8# Gauge

3d Welded 358 Anti Climb Fence Clear View Anti Theft Prison 3"*0.5''*8# Gauge

FAQ

Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight
Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.
Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.
Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
